Item specifics
  • Products Status: Stock
  • Brand Name: scanhome
  • Product Type: Portable Scanner
  • Type: Barcode Scanner
  • Novelty: New
  • Model Number: ZD5600
  • Barcode support: Standard 1D,2D(PDF417,Data Matrix,QR ect)
  • interface: USB
  • The data line length: 2 Meters
  • Physical dimension: 155mm(L)*65mm(W)*95mm(H)
  • Scanning type: Image Type
  • LED indicator: Red
  • Scanner weight: 180g
  • Ambient light immunity: 0-100.000LUX
  • Fall-down test: 50 order/1.5M
  • Exercise tolerance: 100mm/sec 13milUPC
Product Description

BF1_01BF1_02BF1_03BF1_04BF1_05BF1_06BF1_07BF1_08BF1_09BF1_10BF1_11BF1_12BF1_13BF1_14BF1_15BF1_16BF1_17BF1_18

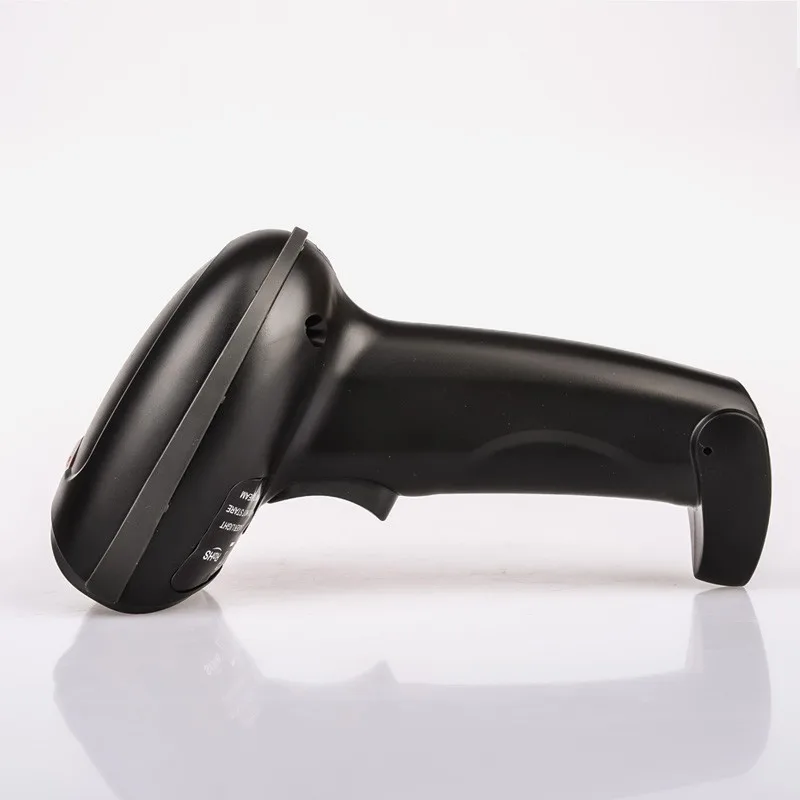

Free Shipping!Supermarket Handheld 2D Code Scanner Bar Code Reader QR Code Reader USB ZD5600 Bar Code scanner

ZD5600AA1

ZD5600 Technical Parameters:
Physical parameters
Scanning type: Image Type
Safety performance:Accord with national level two laser safety standards

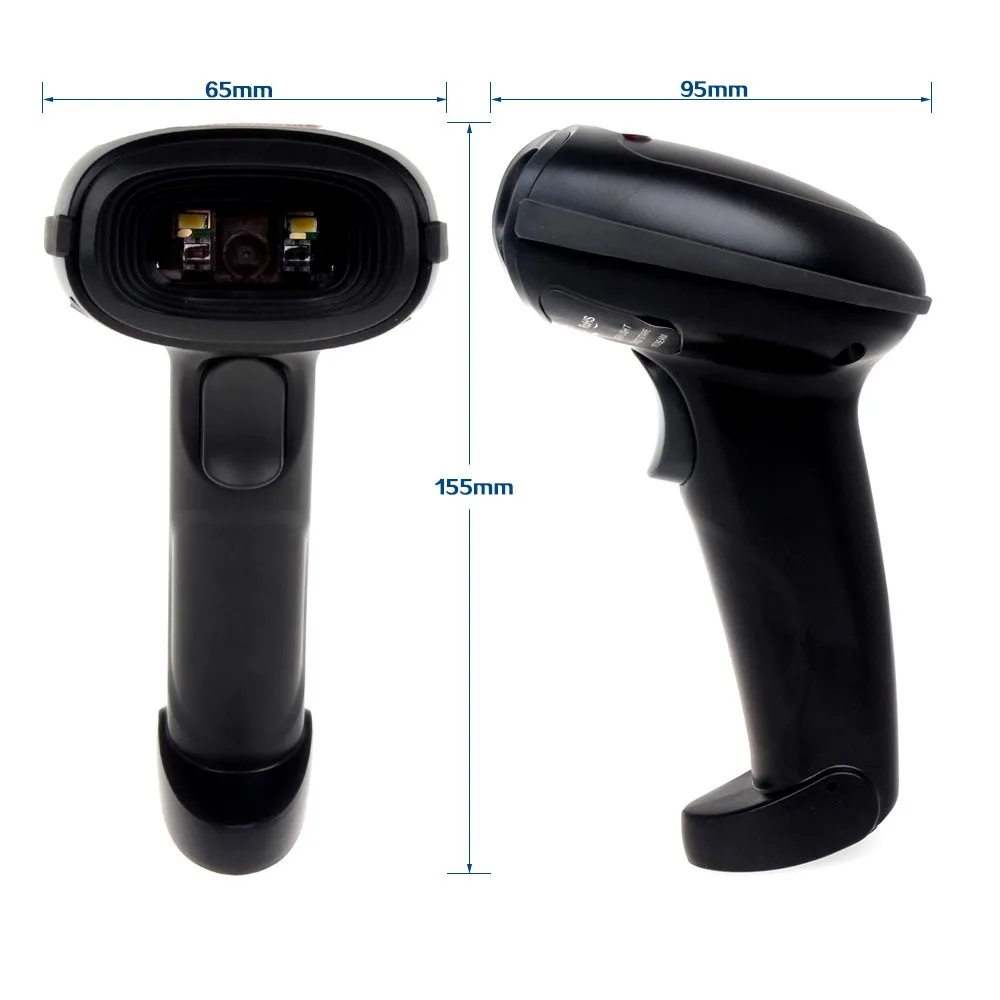

Physical dimension:155mm(L)*65mm(W)*95mm(H);
package size:200mm(L)*130mm(W)*105mm(H);
Material: ABS+TPU
Scanner weight:180g;
Package weight:340g;
LED indicator:Red;
A2A3

Performance parameter
Working current: 340mA;
DC power supply: Class2;DC 5.2V@1A;
Working power: 2W,400mA@5V-The typical value;

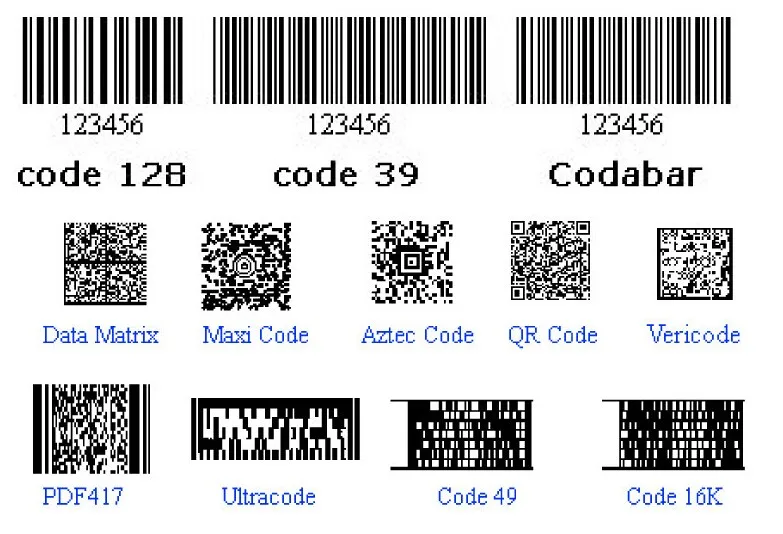

Barcode type: Standard 1D,2D bar code (PDF417,Data Matrix,QR ect)
Key scan times:5000,0000 times;
System interface USB;
The data line length:2 meters

Enviromental Parameter:
Operating temperature:0C-40 C;
Storage temperature:-40C-60C;
Operating humidity:5%-95% Relative humidity,no condensation state
Electrostatic protection:+/-15kVDC Air discharge,
                         +/-8kVDC Direct/indirect discharge
Fall-down test:50 order/1.5M;
Ambient light immunity:0-100.000LUX;
Exercise tolerance:100mm/sec 13milUPC;
IP Class:IP41;
LED Safety Certification:IEC6247;
CB:IEC60950;
Integrated authentication:GOST-R(Russia),CE;
EMI:Accord en50081,par1 specifications;
EMC Electromagnetic compatibility:EN55022,EN55024 Class B;
Dust: Seal to resist invasion of dust particles in the air.

Classical Performance:
Barcode density:Depth of field;
5 mil Code39:  33-95mm(1.3-3.7in.);
13 mil UPC: 32-255mm(1.3-10.0in.);
20 mil Code39: 35-355mm(1.4-14.0in.);
6.7 mil PDF417: 30-95mm(1.2-3.7in.);
10 mil Data Matrix: 30-100mm(1.2-3.9in.);
15 mil Data Matrix: 21-162mm(0.8-6.4in.);
20 mil QR :23-200mm(0.9-7.9in.)
This data may be due to bar code quality and environmental factors and different.
ZD5600 (1)

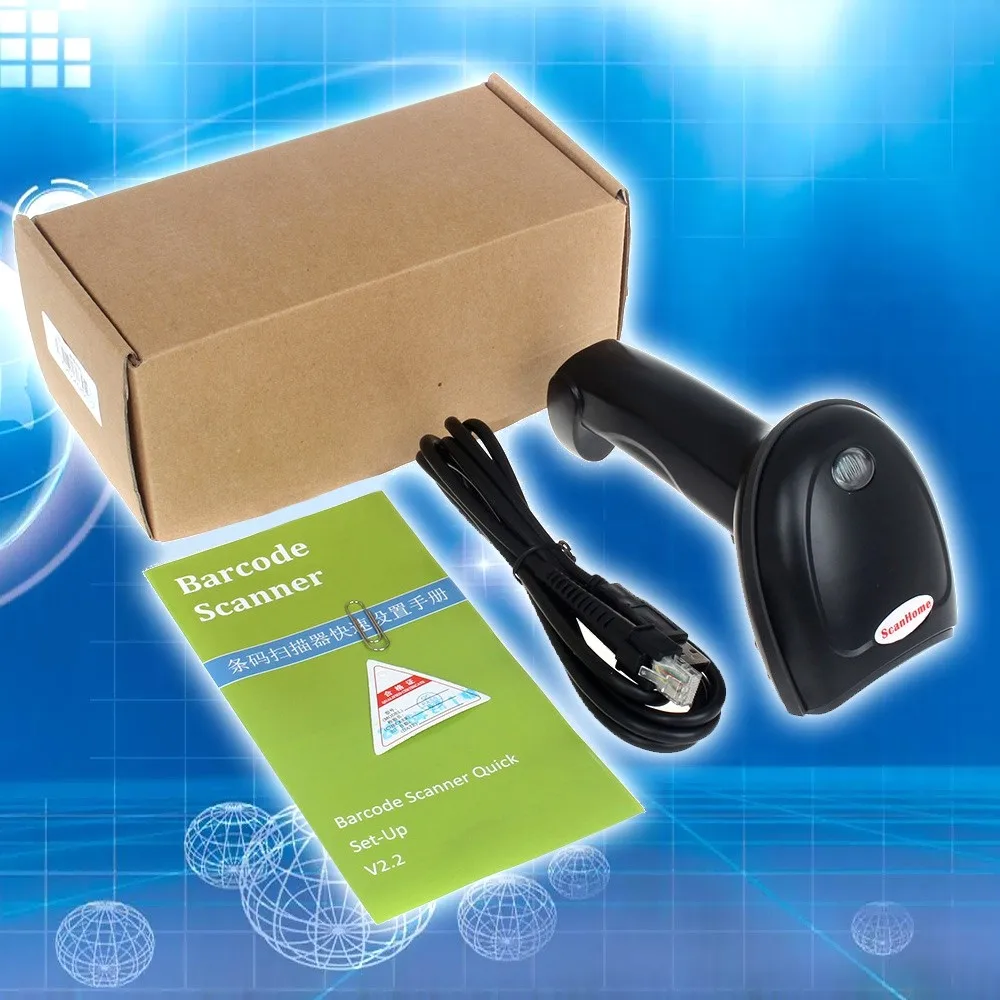

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.35kg (0.77lb.)
  • Package Size: 15cm x 12cm x 7cm (5.91in x 4.72in x 2.76in)
