Item specifics
  • Brand Name: NTEUMM
  • Scan Breadth: A4
  • Scan Speed: 100 scans/second
  • Product Type: Portable Scanner
  • Max Paper Size: A4
  • Scanning Light Source: Laser Light
  • Interface Type: USB
  • Optical Resolution: 2400*1200
  • Products Status: Stock
  • Type: Handheld Scanners
  • Novelty: New
  • Optical Resolution: 2400*1200
  • Model: NT-2012
  • Scan Breadth: A4
  • Type: Handheld Scanners
  • Country/Region of Manufacture: China
  • Scanning Light Source: Laser Light
  • Scan Speed: 100 scans/second
  • barcode scanner: inventory machine
  • Interface Type: USB
  • scanner: Wireless scanning gun
Product Description

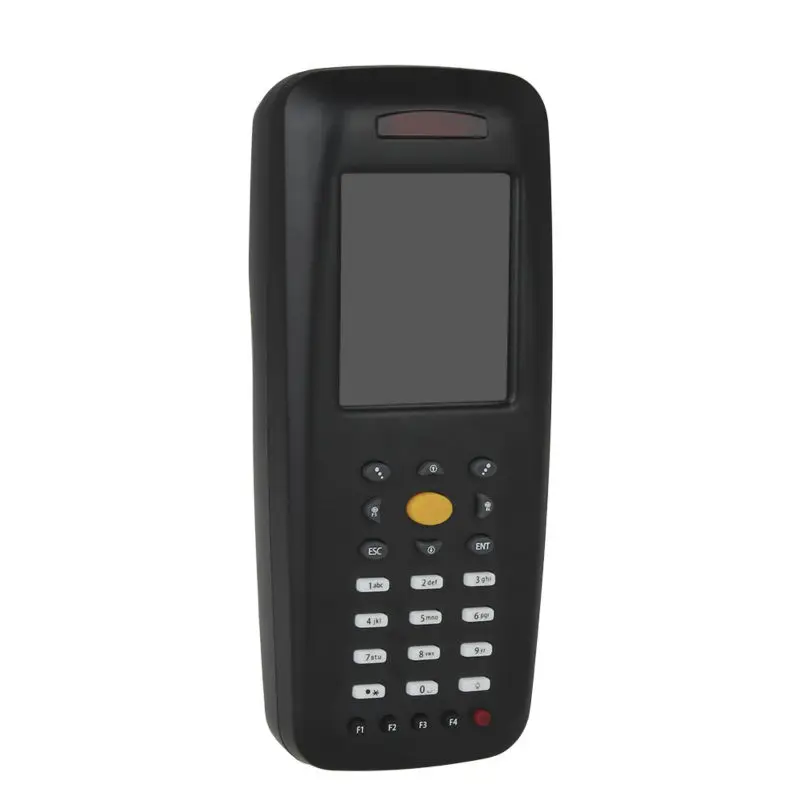

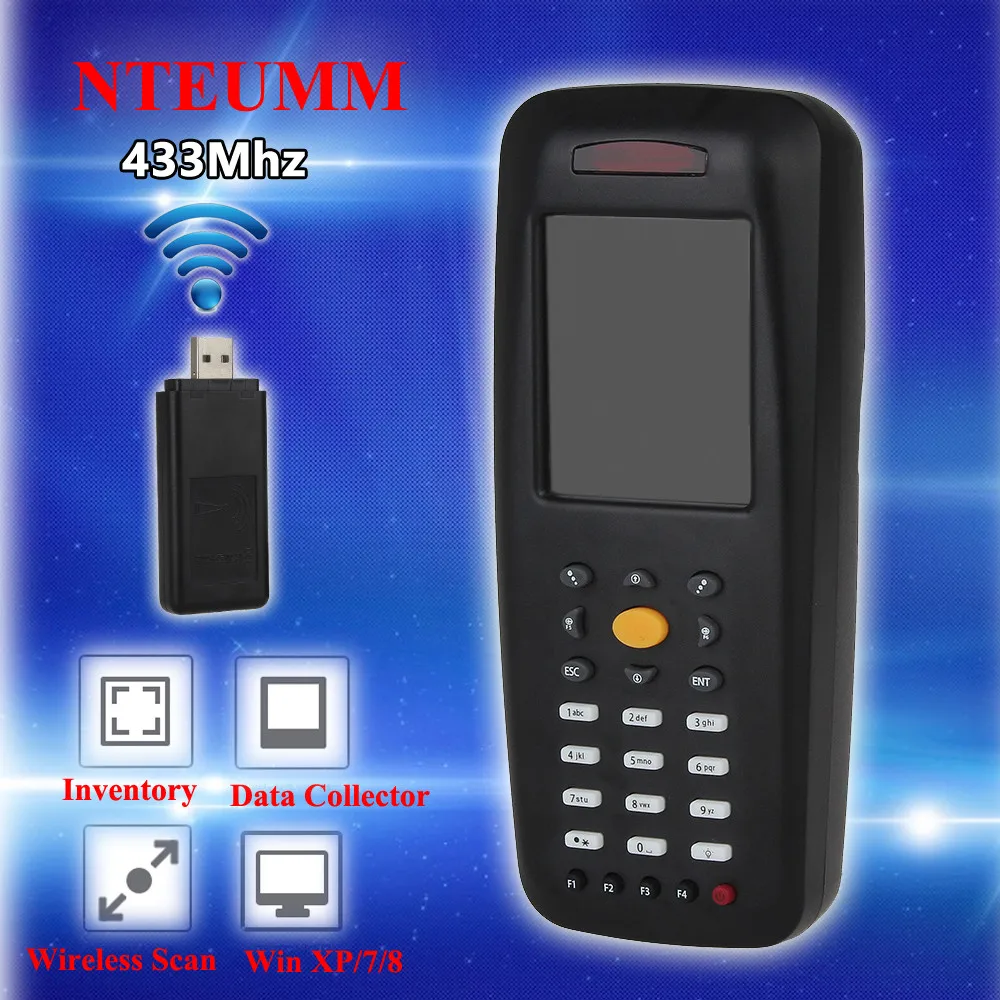

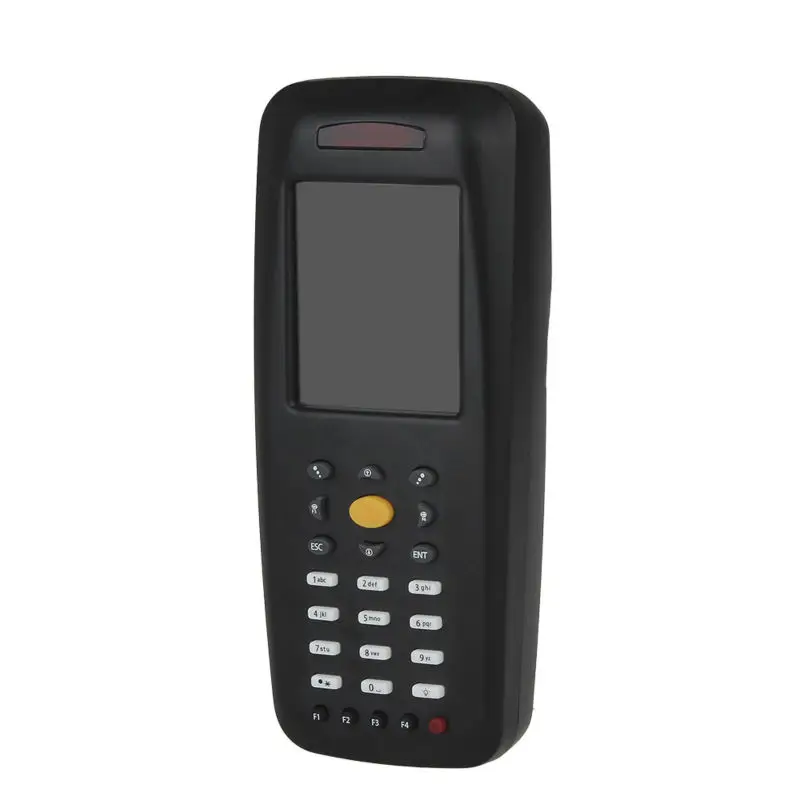

Free Shipping! NTEUMM 2016 Portable Mobile Terminal Data Wireless Barcode Scanner Code Data Collector Handheld Scanner Inventory
I0322 -NT2012    (1)

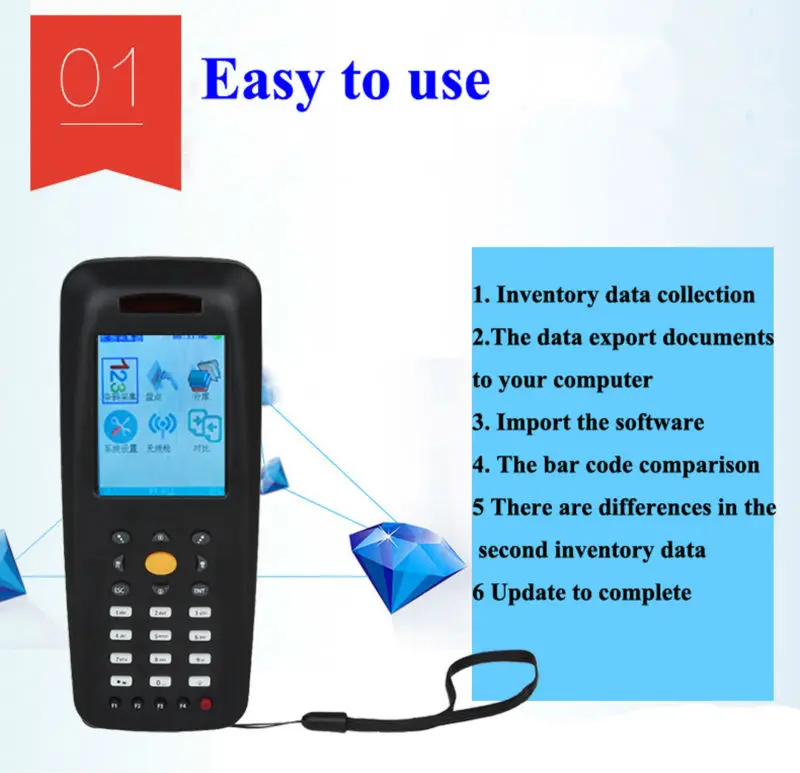

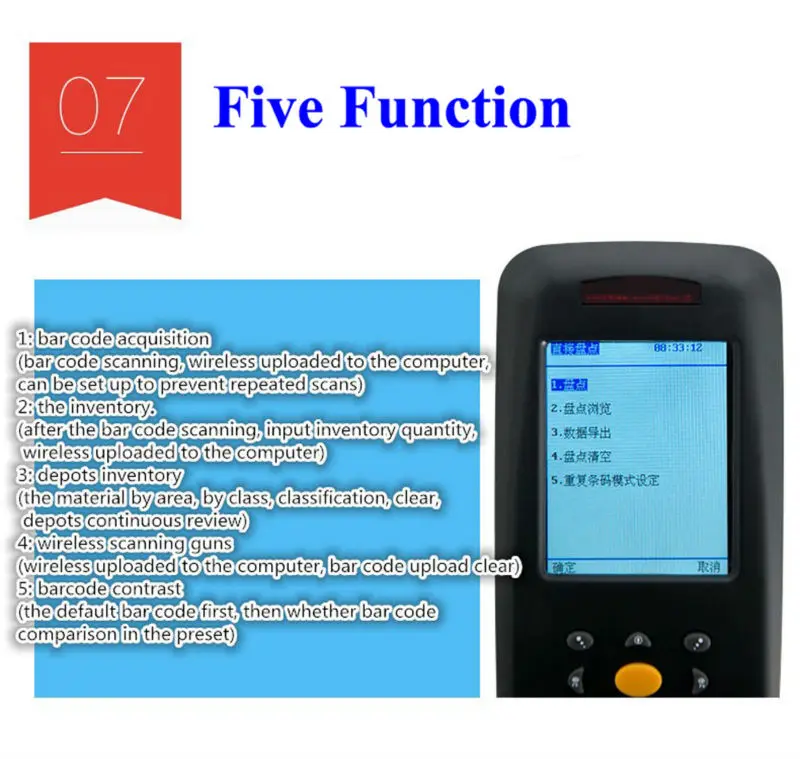

Function:

1:Bar code acquisition

(bar code scanning, wireless uploaded to the computer, can be set up to prevent repeated scans)
2:The inventory.
(after the bar code scanning, input inventory quantity, wireless uploaded to the computer)
3:Depots inventory
(the material by area, by class, classification, clear, depots continuous review)

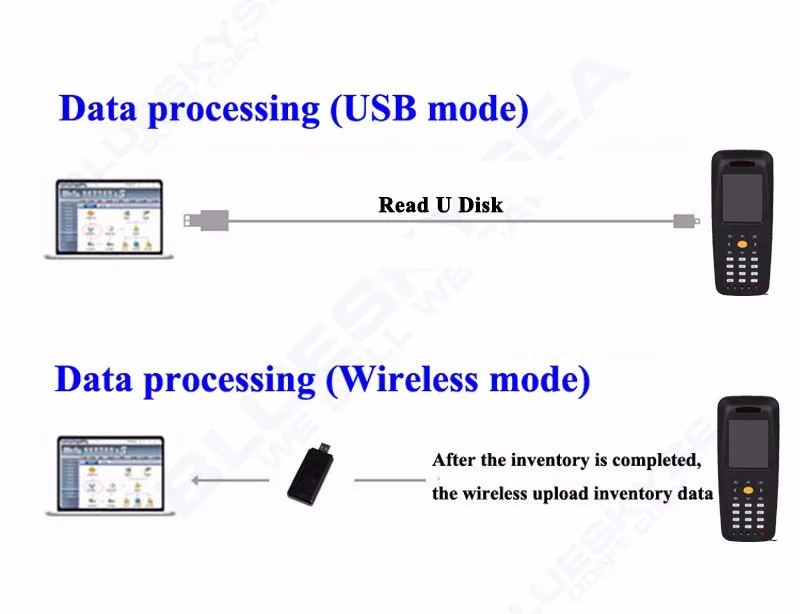

4:Wireless scanning guns
(wireless uploaded to the computer, bar code upload clear)
5:Barcode contrast
(the default bar code first, then whether bar code comparison in the preset)



I0322 -NT2012  -  (9) I0322 -NT2012  -  (1) I0322 -NT2012  -  (2) I0322 -NT2012  -  (3) I0322 -NT2012  -  (4) I0322 -NT2012  -  (5) I0322 -NT2012  -  (6) I0322 -NT2012  -  (7) I0322 -NT2012  -  (8)
Wireless communication parameters:

Operating Frequency: ISM band, 433MHz
Modulation: GFSK
Transfer rate: 200Kbps
Maximum power: 10dBm
Coverage: Visual straight line distance of 100 meters (Max.)
Antenna: Built-acquisition antenna, a receiver built-in antenna
Display screen: 2.4 inches


Scan decoding parameters:

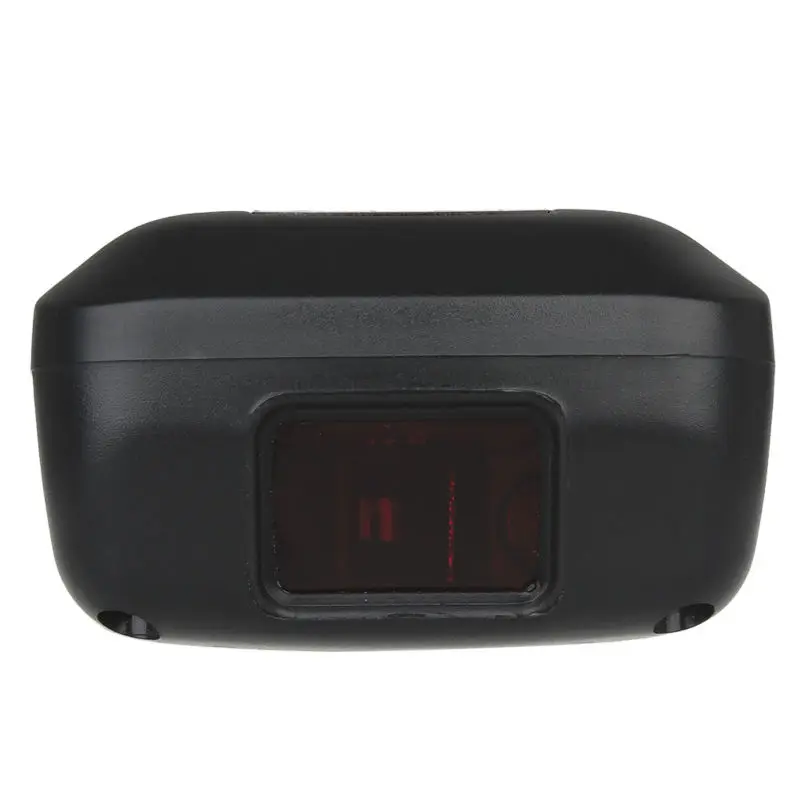

Light type: red laser diode, wavelength 650nm
Scan Mode: Single scan
Scanning speed: 100 times per second
Scanning accuracy: 3mil
Scanning width: 20mm @ window, 220mm @ 200mm
Scan Depth: 25CM
Corner: off-vertical angle of not less than plus or minus 30 degrees;
Elevation: deviation from the normal angle of not less than plus or minus 65 degrees;
Declination: deviation from the normal angle of not less than plus or minus 60 degrees;
Print Contrast: 30% minimum reflectance difference
Scan mode: Scan by one
BER: 1/800 Wan
Prompt modes: buzzer, LCD direct significant
Decoding capability: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, etc.
Receiver interface support: USB 2.0 or later


I0322 -NT2012  -  (10) I0322 -NT2012  -  (11) HTB1cL.6OpXXXXa9XFXXq6xXFXXXK
I0322 -NT2012 (1) I0322 -NT2012 (2) I0322 -NT2012 (3) I0322 -NT2012 (4) I0322 -NT2012 (5) I0322 -NT2012 (6) I0322 -NT2012 (7) I0322 -NT2012 (8) I0322 -NT2012 (9) I0322 -NT2012 (10) I0322 -NT2012 (11) I0322 -NT2012 (12)

Electrical parameters:

Receiver Power Supply: USB bus powered 5V
Operating Current: 25mA
Check Machine Battery: Capacity: 1600mAH lithium battery greater than or equal
Power protection: low pressure alarms and automatic shutdown, power data protection;
Charging indicator: LCD direct display, buzzer sound;
Check Machine Operating Current: 96mA
Check Machine standby current: 46mA
Laser Safety: compliance with national secondary laser safety standards; compliance with CLASS-II standard


Physical parameters:

Memory: 2M

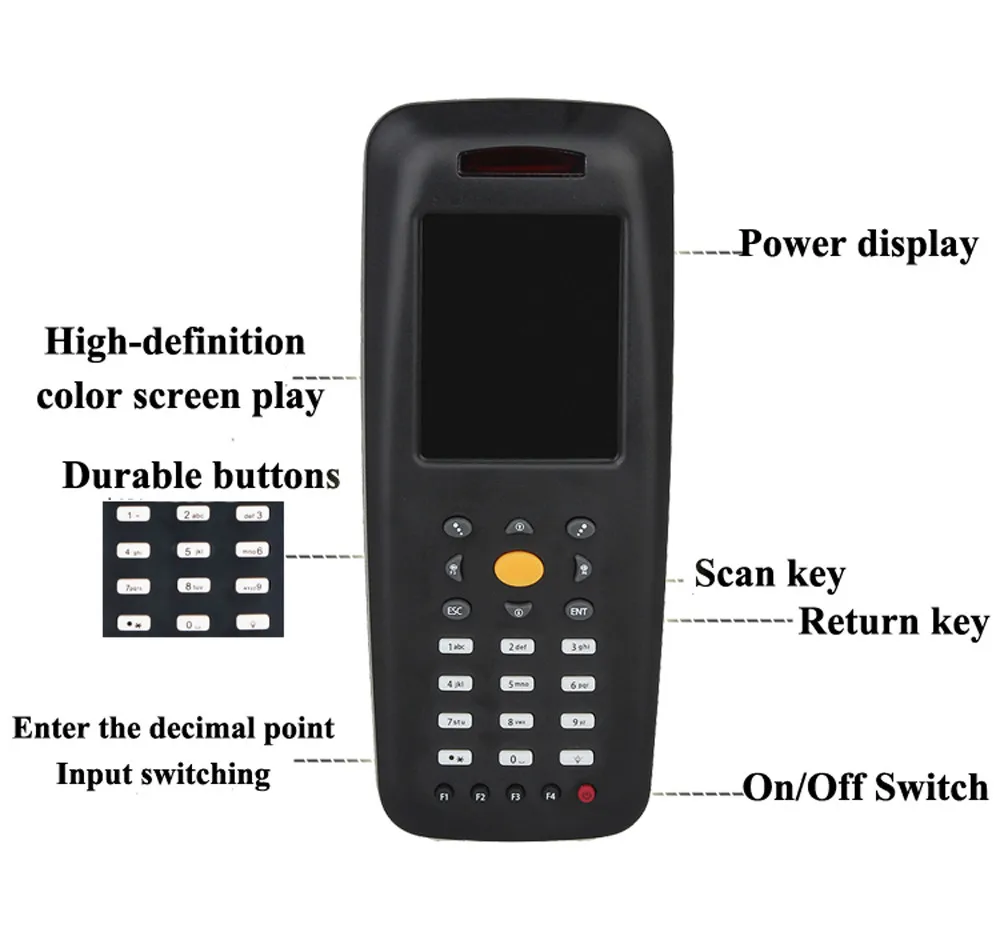

Keys: 25 key physical keyboard
Receiver Size: 2cm-6cm
Check Machine Dimensions: 16.6MM × 29MM × 31MM
Material: ABS

Environmental parameters:

Operating temperature: -10 ~ 45 Degree Celsius
Storage temperature: -20 ~ 60 Degree Celsius
Humidity: 20-90% (non-condensing).
Ambient brightness: Max.5,000 Lux (fluorescence)
Antistatic: not less than 15KV air discharge

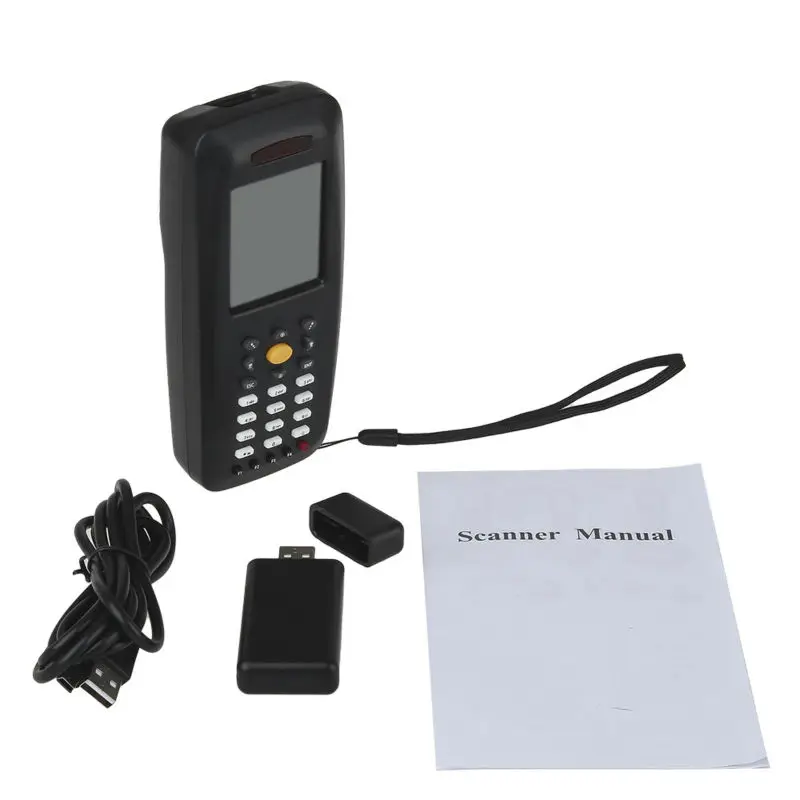

Package Included:

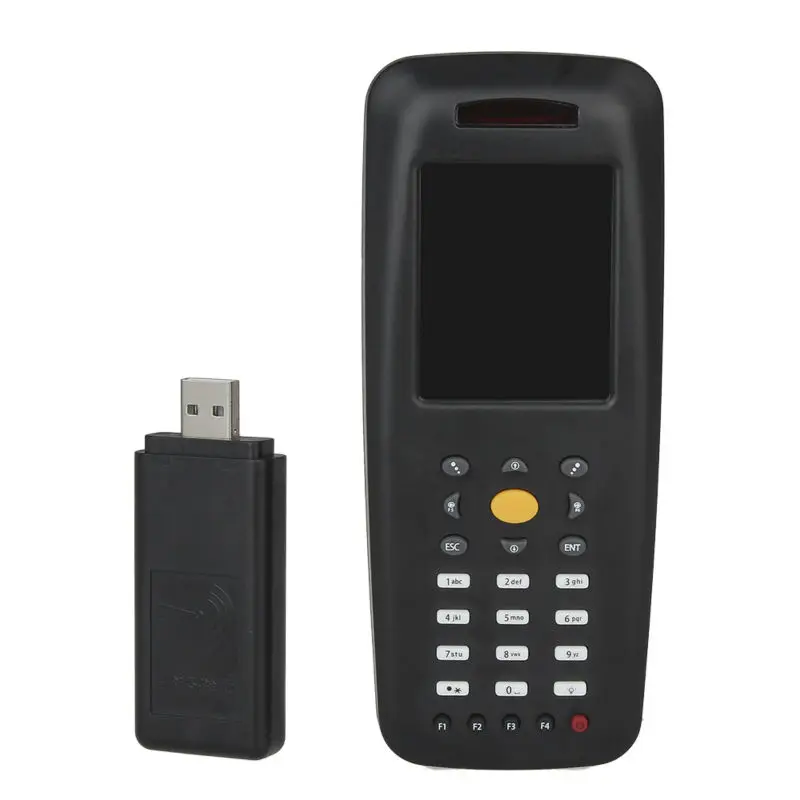

1xNT-2012 Collector( AA Battery not included)
1xReceiver
1xUSB cable
1xManual
1xCertificate
I0322 -NT2012 (13)



Packaging Details
  • Unit Type: piece
  • Package Weight: 0.5kg (1.10lb.)
  • Package Size: 23cm x 21cm x 21cm (9.06in x 8.27in x 8.27in)
