Item specifics
  • Colour Depth: 32 Bit
  • Scanning Light Source: Laser Light
  • Max Paper Size: A4
  • Scan Element Type: CMOS
  • Model Number: NT-2013
  • Type: Barcode Scanner
  • Scan Breadth: A4
  • Time to market: Mar-13
  • Product Type: Bar Code Scanner
  • Interface Type: USB
  • Products Status: Stock
  • Novelty: New
  • Optical Resolution: Optical Resolution:4mil
  • Scan Speed: 250 scans/sec
  • Item Name: Auto-induction Desktop 2D QR Code Barocde Reader
  • Product Type: Portable Scanner
  • Light source: Visible red LED 645nm+/-7.5nm
  • Auto-sense: No press button support
  • Interface support: USB port
  • Print contrast: 20% minimum reflectance difference
  • Optical Resolution: 4mil
  • Scan Speed: 250/second
  • Material: ABS+PC
  • Depth of scan field: 10-300mm
Product Description

New Auto scanning 2D Laser Desktop Flatbed Barcode Scanner Bar code Reader with USB Interface for Retail Store/Supermarket

Advantage:

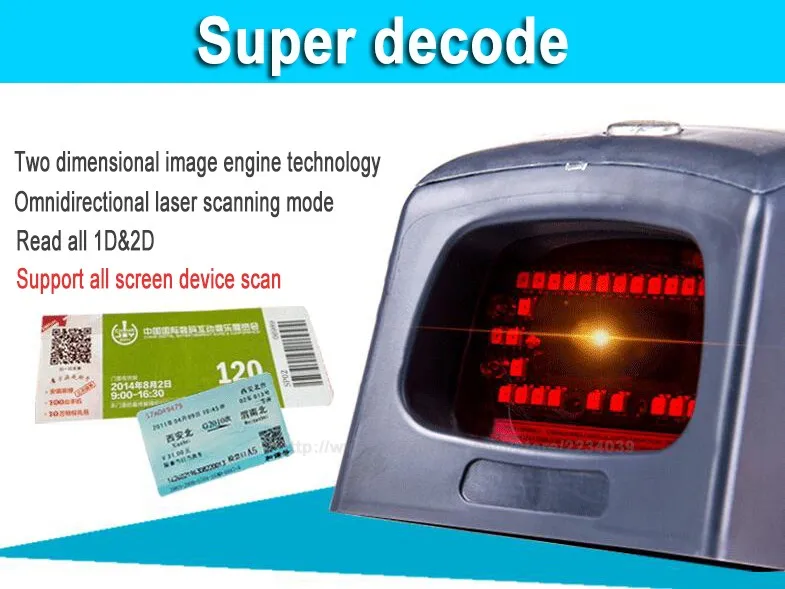

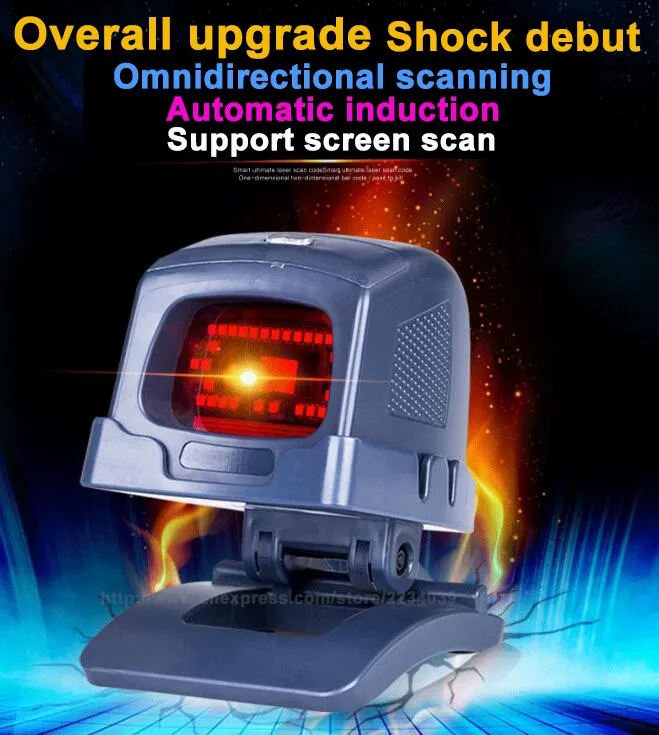

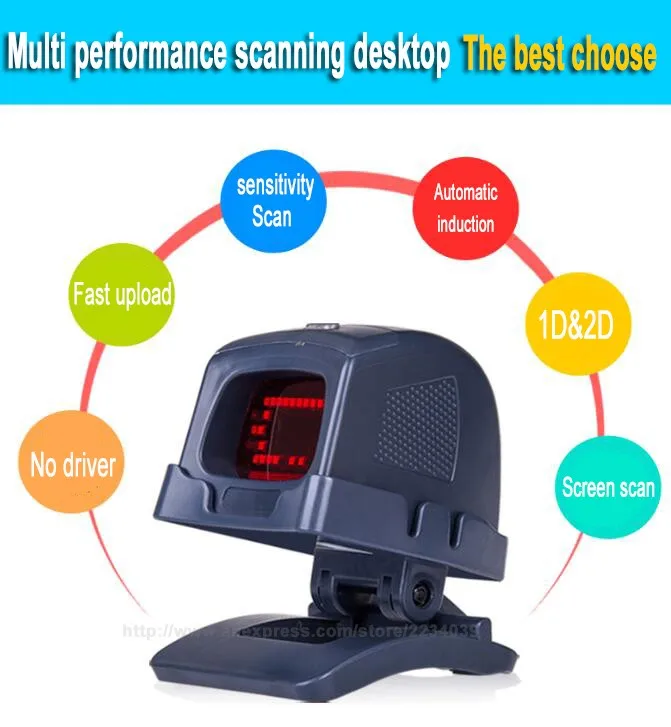

1>Omnidirectional intelligent scanning
2>Scan all 1d, 2d, qr and pdf417 barcode

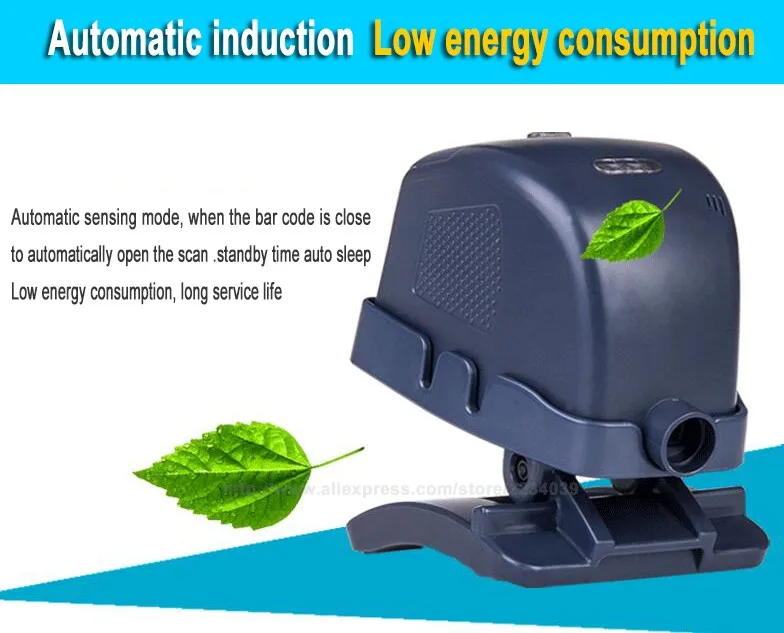

3>Auto induction scanning high speed 250 scans/sec
4>No driver, plug and play
5>Manual / automatic integration

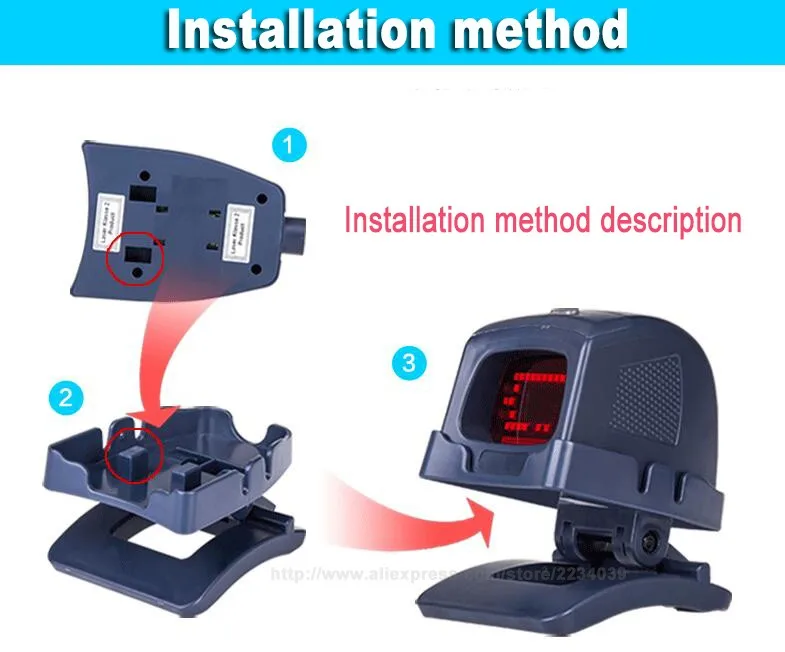

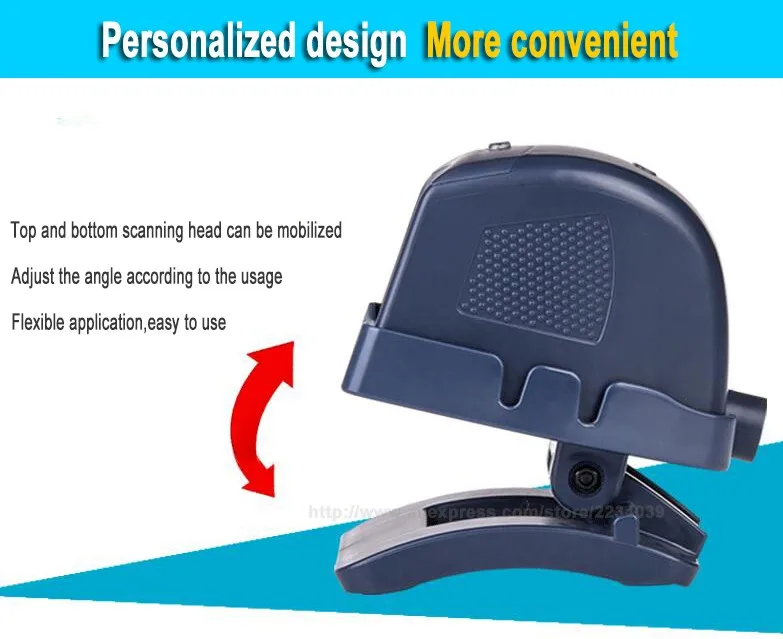

6>Hoder can Pull down/ can be modulated
7>Mobile Phone/ Computer Screen Scan
8>USB/PS3/RS232 interface, more choice
9>Multiline scan barcode, more accurate and effecient
10>New design concept,make operation more comfortable

11112222

Brief of Brand Symcode NT-2013
performance product for you!wide variety of applications. Compared to the expensive imported scanners, NT-2013 is definitely a cost effective and high bar codes including 1D, PDF417 ,EAN/UCC Composite, Matrix and Postal Codes regardless of orientation.It’s suitable for a It is a high performance hand-held area-imaging scanner. This desktop handsfree scanner decodes all of  today’s  standardprinted or damaged bar codes—by incorporating high resolution imaging and true contact reading into an affordable solution.NT-2013 provides users with increased throughput for virtually all 1D and 2D bar code  reading applications—including poorly.

Product parameters
Operational
Light Source                               Visible Red LED 625nm±6.5nm

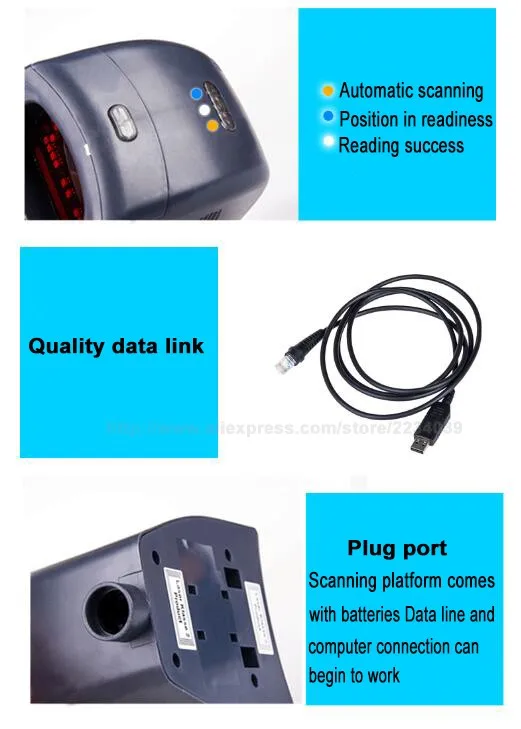

Visual Indicators                          Blue=ready to scan;white=good read;Yellow=automatical scanning
Host System Interfaces                USB,RS232,keyboard Wedge,IBM 46xx(RS485)
Mechanical
Dimensions(L*W*H)                  (With stand)1300mm*98mm*128mm;(Host)125mm*86mm*85mm
Weight                                       (With stand)510G;(Host)310G
Electrical
Input Voltage                              5VDC
Operating Power(typical)             2W(400mA@5V)
DC Transformers                        Class2:5VDC@2A
LED                                          Class Class1;IEC60825-1 EN60825-1
EMC                                         FCC Part15,IEC60825-1,EN55022 Class B
Environmental
Operating Temperature                0°C-45°C
Storage temperature                    -40°C-60°C
Humidity                                   0% to 95% relative humidity,no-condensing

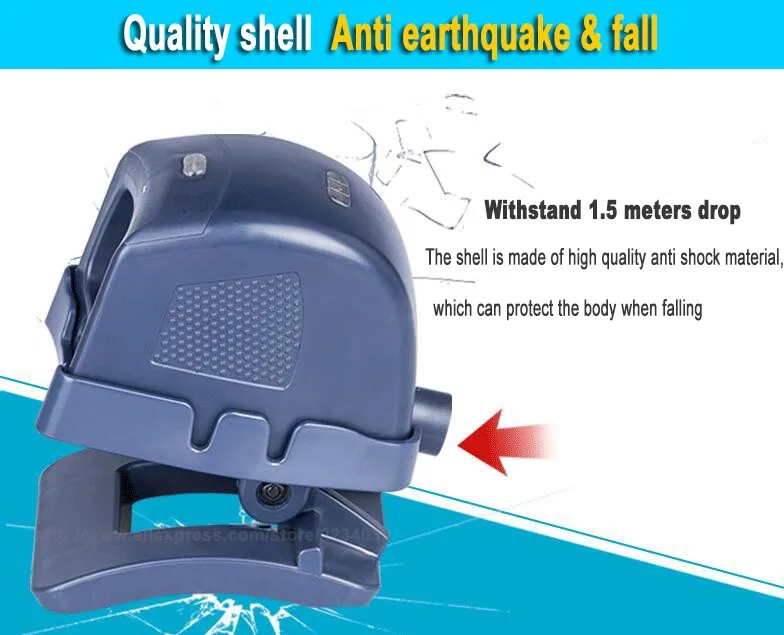

Drop                                         Designed to withstand 1.5m(5\') drops
Environmental sealing                 Sealed to resist airborne particulate contaminants
Light Level                                100000 Lux(9290 foot-candles)
Scan performance
Scan pattern                              Area Image(1280*512 pixel array)
Motion Tolerance                       47 cm/s(18 in/s) for 13mil UPC at optimal focus
Scan Angle                                Horizontal:50
Print Contrast                            20% minimum reflectance difference
Pitch,Skew                                75°,75°
Decode Capability                      *1D:Code 39,Code 93,Code 128,UPC/EAN/JAN,Code2 of 5,Code11,Codebar,MSI Plessey,GS1 databar;Telepen,Trioptic
                                                *PDF:PDF 417, MicroPDF417
                                                *2D:QR code,Micro QR Code,Data Matrix,Aztec Code,Maxicode,Code block, Composite code, POSTNET,PLANET,UPC,Intelligent Mail,Canada                                                                       Post,Australia Post,Japanese Post,Royal Mail RM4SCC,KIX Code
                                                *OCR:OCR-A,OCR-B,E-13B MICR

333344445555666677778888
9999
121211-11
13131616101014141515
HTB1LSvYJFXXXXaiXVXXq6xXFXXXy
