Item specifics
  • Scanning Light Source: Laser Light
  • Max Paper Size: A4
  • Scan Speed: 100 scans/second
  • Type: Barcode Scanner
  • Scan Breadth: A4
  • Colour Depth: 16 Bit
  • Model Number: RD-2013
  • Product Type: Bar Code Scanner
  • Interface Type: USB
  • Products Status: Stock
  • Novelty: New
  • Scan Element Type: Laser
Product Description

info

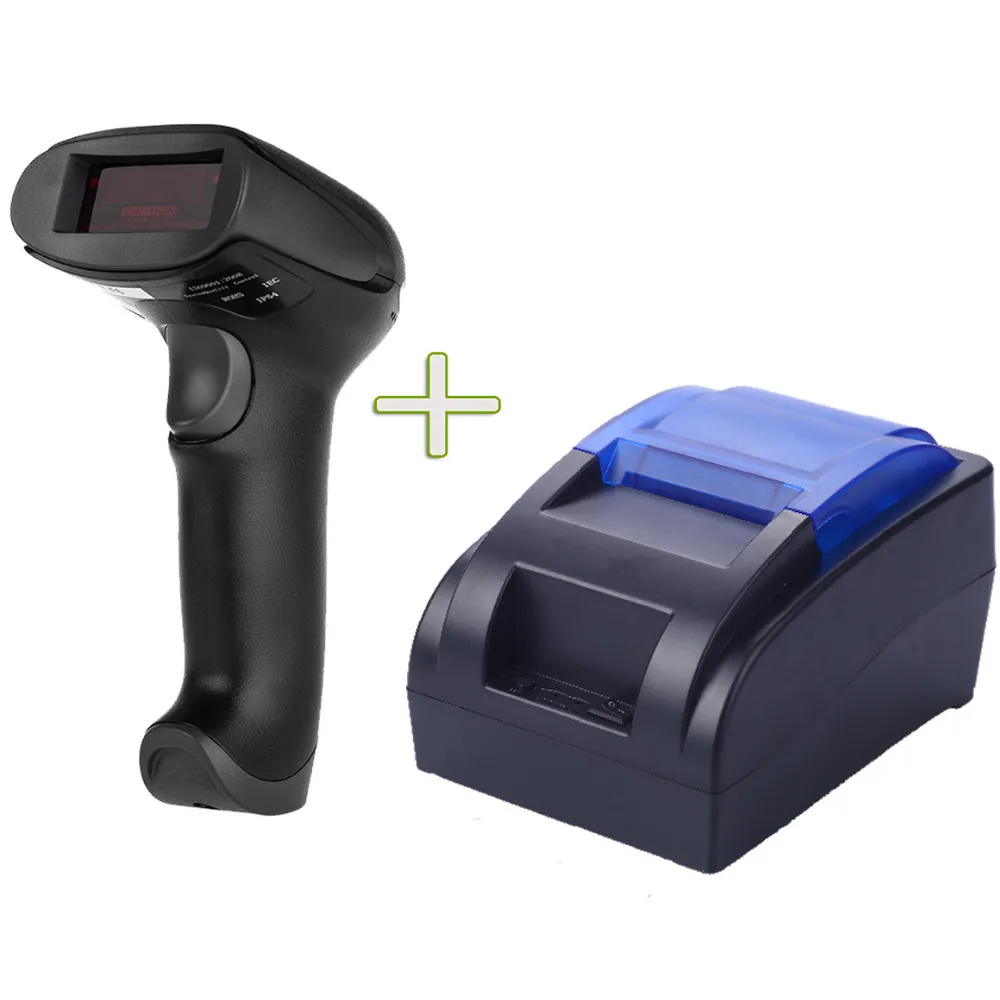

Laser Barcode Scanner Portable USB Wired 1D Cable Reader Bar Code for POS System Supermarket AND Thermal Printer RD-2013+AN-58

Parameter:
Type of illuminant 650nnm laser(visible)
Operation Manual
Depth of scan field 10-500mm
Decode speed 90 times/second
Precision 0.1mm
Decode error rate Less than 1/5 million
Supported interfaces USB
Scan angle Yaw(Skew)45°& Pitch60°
Light intensity Daylight, 4000Lux Max
Decode Capability Code 39,Full ASC II,Code bar,Industrial 2 of 5,Interleave 2 of 5,
Matrix 2 of 5,Code 93,Code 128,Code 32,Standard code 39,
EAN 128,MSI,EAN 8&13,UPCA&E,Plessey,Databar14,TELEPE

Eelectrical
Power voltage DC 5V
Working current 120mA
Static current 10mA

Physical
Exterior dimension L*W*H (mm): 170*75*106
Materials Plastic
Weight 170g

Environmetal
Operating humidity 5%-85%
Storage humidity 5%-85%
Operating temperature -20°C-45°C
Storage temperature -20°C-45°C
Safety performance ROHS class 2 laser product, FCC class B and CE



AN58+2013

HTB1Qbb4KpXXXXcuXXXXq6xXFXXXYrd2013rd-2013_001rd-2013_002rd-2013_003



Parameter:
Type of illuminant 650nnm laser(visible)
Operation Manual
Depth of scan field 10-500mm
Decode speed 90 times/second
Precision 0.1mm
Decode error rate Less than 1/5 million
Supported interfaces USB
Scan angle Yaw(Skew)45°& Pitch60°
Light intensity Daylight, 4000Lux Max
Decode Capability Code 39,Full ASC II,Code bar,Industrial 2 of 5,Interleave 2 of 5,
Matrix 2 of 5,Code 93,Code 128,Code 32,Standard code 39,
EAN 128,MSI,EAN 8&13,UPCA&E,Plessey,Databar14,TELEPE

Eelectrical
Power voltage DC 5V
Working current 120mA
Static current 10mA

Physical
Exterior dimension L*W*H (mm): 170*75*106
Materials Plastic
Weight 170g

Environmetal
Operating humidity 5%-85%
Storage humidity 5%-85%
Operating temperature -20°C-45°C
Storage temperature -20°C-45°C
Safety performance ROHS class 2 laser product, FCC class B and CE



Applicable Scope :

Commercial POS system(supermarket, store, shop, mall)

Warehousing and logistics

Libraries

Banks and Telecom

Transportation

Postal service

Industrial and manufacturing management



Packing List:

User’s manual ×1

Barcode scanner ×1

USB Cable ×1

Note: Kindly remind you that the standard color is BLACK color, if you need white color, pls remark on your order. Thanks!



Application:

1. Supermarket, store and some commercial POS system;

2. Logistics, warehousing, libraries, banks, transportation and postal service

3. Manufacturing process management

4. Some public industry such as tourism, insurance and government.

HTB14ZWCKVXXXXcrXpXXq6xXFXXXj



Packaging Details
  • Unit Type: lot (2 pieces/lot)
  • Package Weight: 1.2kg (2.65lb.)
  • Package Size: 19cm x 12cm x 7cm (7.48in x 4.72in x 2.76in)
